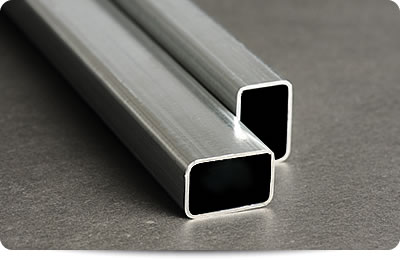

Hot Dip Galvanized Tube
Hot Dip Galvanized Tube
size(mm) 12.7mm~101.6mm 11mm~50mm 10mm~60mm By 15mm~100mm 10/20mm~40/80mm
thickness(mm) 0.6mm~3.5mm 0.6mm~3.5mm 0.6mm~3.5mm 0.6mm~3.5mm

(Minimum quantity required.)
We have the fantastic ability to manufacture new tooling for clients! Please contact us!

size (mm) thickness (mm) Internally scarfed range in thickness (mm)
12.7 0.4~1.6 No
15.9 0.4~2.0 No
19.1 0.4~2.3 No
22.2 0.4~2.5 No
25.4 0.5~3.0 1.2~2.5
28.6 0.5~3.0 1.2~2.5
31.8 0.5~3.0 1.2~3.2
38.1 0.6~3.0 1.2~3.5
42 1.0~3.0 1.2~3.5
45 1.0~2.5 1.2~3.5
48 1.0~3.0 1.2~3.5
57 1.2~3.0 1.2~3.5
2 0.8~3.0 1.2~3.5
60 1.2~3.0 1.2~3.5
63.5 1.2~3.0 1.2~3.5
76.2 1.4~3.0 1.2~3.5
89 1.4~3.0 1.2~3.5
101.6 1.4~3.0 1.2~3.5
9m/m 0.6~1.0 No
10m/m 0.6~1.0 No
12 0.7~1.4 No
14 0.7~1.4 No
17.2 1.0~2.0 No
18 0.6~2.0 No
20 0.6~2.0 No
30 0.8~2.5 1.2~2.5
33.4 0.8~2.5 1.2~2.5
26.7~27 1.2~2.0 1.2~2.5
27.5~27.8 1.2~2.0 1.2~2.5
21.3 1.0~2.0 No
23.8 0.7~2.0 No
36.5 0.7~2.0 1.2~2.5
35 0.6~2.5 1.2~2.5
50 1.0~3.0 1.2~3.5
39 0.6~1.5 1.2~2.5



size (mm) thickness (mm)
11 0.6~1.8
12.7 0.6~1.8
15.8 0.6~2.0
18 0.6~2.5
19 0.6~2.5
20 0.6~2.5
21.3 0.6~2.5
25~25.4 0.7~3.0
30 0.7~3.0
31.8 0.7~3.2
38 0.8~2.5
45 1.0~3.0
50 1.2~3.5
33.4 0.7~2.5
12.3 0.6~1.8
50.8 0.8~3.5
size (mm) thickness (mm)
20/60 1.0~2.0
22.6/44.7 1.0~2.0
10/20 0.6~1.6
12/25 0.7~2.0
15/30 0.7~2.5
15/25 0.7~2.0
16/22 0.7~2.0
16/32 0.7~2.0
16.5/34 0.8~2.5
20/40 0.8~2.5
25/50 0.9~2.5
30/60 1.0~3.0
30/70 1.2~3.0
18.8/37.8 1.0~2.0
22/29 0.7~2.0
17/24 0.7~2.0
13/18.5 0.7~2.0

size (mm) thickness (mm)
10/20 0.6~1.5
14/20 0.8~1.5
14/22 0.8~1.5
13/26 0.7~2.0
12/25 1.0~1.5
12.7/19.1 1.0~1.5
17/20 0.7~1.5
12.7/31.8 0.7~1.5
13/38 0.7~2.0
14/18 0.7~1.5
15/20 0.7~1.5
15/30 0.7~2.0
20/60 1.2~2.3
20/30 0.7~1.5
20/35 0.7~1.5
20/40 0.8~2.0
20/45 0.8~2.0
25/50 1.0~3.0
25.4/50.8 1.0~3.0
25.4/47.6 1.0~2.0
17.1/42.3 1.0~3.0
30/60 1.2~3.0
40/80 1.4~3.0
50/100 1.8~3.0
10/15 0.7~1.5
25/75 1.2~3.0
20/80 1.5~3.0
38.1/50.8 1.4~3.0
28/58 1.4~3.0
30/40 1.0~2.0
25/40 1.0~2.0
